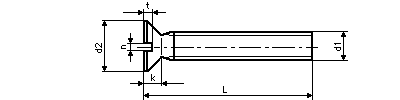

DIN963
Slotted Countersunk Head Screws 一字槽沉头机螺钉
){kind=link}
等级 4.8
8.8
A2-70
镀别 蓝白锌
彩锌
本色
|
Thread d1
|
M1
|
M1.2
|
M1.4
|
M1.6
|
M2
|
M2.5
|
M3
|
M3.5
|
|
Thread Pitch P mm
|
0.25
|
0.25
|
0.3
|
0.35
|
0.4
|
0.45
|
0.5
|
0.6
|
|
Head Diameter d2 mm
|
1.9
|
2.3
|
2.6
|
3
|
3.8
|
4.7
|
5.6
|
6.5
|
|
Head Height k mm
|
0.6
|
0.72
|
0.84
|
0.96
|
1.2
|
1.5
|
1.65
|
1.93
|
|
Slot Width n mm
|
0.25
|
0.3
|
0.3
|
0.4
|
0.5
|
0.6
|
0.8
|
0.8
|
|
Slot Depth t mm
|
0.2
|
0.25
|
0.28
|
0.32
|
0.4
|
0.5
|
0.6
|
0.7
|
|
Thread d1
|
M4
|
M5
|
M6
|
M8
|
M10
|
M12
|
M16
|
|
|
Thread Pitch P mm
|
0.7
|
0.8
|
1
|
1.25
|
1.5
|
1.75
|
2.0
|
|
|
Head Diameter d2 mm
|
7.5
|
9.2
|
11
|
14.5
|
18
|
22
|
29
|
|
|
Head Height k mm
|
2.2
|
2.5
|
3
|
4
|
5
|
6
|
8
|
|
|
Slot Width n mm
|
1
|
1.2
|
1.6
|
2
|
2.5
|
3
|
4
|
|
|
Slot Depth t mm
|
0.8
|
1
|
1.2
|
1.6
|
2
|
2.4
|
3.2
|
|
|
L
|
2-120
|
|||||||
